AIR SOURCE HEAT PUMP
AIR SOURCE HEAT PUMP - DOMESTIC SYSTEMS

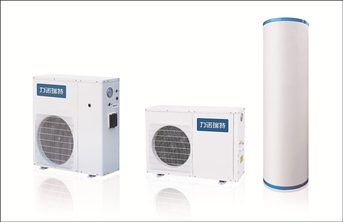

REFRIGERANT RECYCLING AIR SOURCE HEAT PUMP
For hot water generation
Performance characteristics
- operating under Reverse Carnot Cycle; conduct heat exchange by refrigerant recycling.
- Heat exchange coiler in water tank; pressurized operating without water pump.
- Compact and delicate host design; flexible installation of both host and water tank.
- Fast heat transfer and high heat exchange efficiency.
SPECIFICATION
| Series | KF1-80/150 | KF1-120/200 | KF1-160/300 | KF1-115/260 | KF1-175/400 | KF1-175/500 |
|---|---|---|---|---|---|---|
| Heating output (KW) | 3.5 | 3.5 | 3.5 | 5.0 | 5.0 | 5.0 |
| Rated hot water output (L/h) | 80 | 80 | 80 | 120 | 120 | 120 |
| Hot water temperature (ºC) | 40~55 | 40~55 | 40~55 | 40~55 | 40~55 | 40~55 |
| Power supply | 220V/50Hz | 220V/50Hz | 220V/50Hz | 220V/50Hz | 220V/50Hz | 220V/50Hz |
| Rated input power (W) | 930 | 1340 | 1800 | 1300 | 2000 | 2000 |
| Pipe diameter(mm) | Ø9.52/Ø6.35 | Ø9.52/Ø6.35 | Ø12.7/Ø6.35 | Ø12.7/Ø6.35 | Ø12.7/Ø6.35 | Ø12.7/Ø6.35 |
| Host weight(kg) | 30 | 34 | 38 | 36 | 43 | 43 |
| Host dimensions(mm) | 795×540×255 | 795×540×255 | 795×540×255 | 780×540×260 | 780×540×260 | 780×540×260 |
| Refrigerant charge(g) | 930 | 1230 | 1280 | 1150 | 1800 | 1800 |
| Tank capacity (L) | 150 | 200 | 300 | 260 | 400 | 500 |
| Coil pipe dimension | Ø9.52×20m | Ø9.52×30m | Ø9.52×30m | Ø9.52×30m | Ø12.7×30m | Ø12.7×30m |
| Tank weight(kg) | 35 | 45 | 61 | 53 | 83 | 96 |
| Tank dimension(mm) | Ø470×1470mm | Ø520×1550mm | Ø560×1850mm | Ø560×1550mm | Ø700×1550mm | Ø700×1850mm |
| Inlet/outlet(mm) | G1/2” | G1/2” | G3/4” | G1/2” | G3/4” | G3/4” |
| Ambient temperature (ºC) | -7~43 | -7~43 | -7~43 | -7~43 | -7~43 | -7~43 |
| Series | KF2-80/150 | KF2-120/200 | KF2-160/300 |
|---|---|---|---|
| Heating output (W) | 3700 | 5500 | 7200 |
| Rated hot water output (L/h) | 80 | 120 | 160 |
| Hot water temperature(ºC) | 40~55ºC | 40~55ºC | 40~55ºC |
| Power supply | 220V/50Hz | 220V/50Hz | 220V/50Hz |
| Rated input power (W) | 930 | 1340 | 1800 |
| Pipe diameter(mm) | Ø9.52/Ø6.35 | Ø9.52/Ø6.35 | Ø9.52/Ø6.35 |
| Host weight(kg) | 30 | 34 | 38 |
| Host dimensions(mm) | 795×540×255 | 795×540×255 | 795×540×255 |
| Refrigerant charge(g) | 1200 | 1450 | 1540 |
| Tank capacity (L) | 150 | 200 | 300 |
| Coil pipe dimension | Ø7.94×51m | Ø7.94×51m | Ø7.94×70m |
| Tank weight(kg) | 35 | 48 | 56 |
| Tank dimension(mm) | Ø470×1480 | Ø520×1520 | Ø600×1560 |
| Inlet/outlet(mm) | G1/2” | G1/2” | G3/4” |
| Ambient temperature (ºC) | -7~43 | -7~43 | -7~43 |

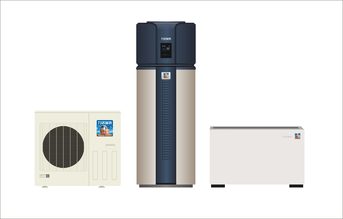

WATER RECYCLING AIR SOURCE HEAT PUMP
For hot water generation
Performance characteristics
- Operating under Reverse Carnot Cycle; conduct heat exchange by both refrigerant recycling and water recycling.
- Driven by circulating pump; adopts coaxial heat exchanger in the host for heat exchange.
- Easy and flexible installation of both host and water tank.
- High heat exchange performance and stable operating.
SPECIFICATION
| Series | KFXRS-36-LPR | KFXRS-53-LPR | KFXRS-80-LPR |
|---|---|---|---|
| Heating output (KW) | 3.6 | 5.3 | 8.0 |
| Rated hot water output (L/h) | 75 | 115 | 175 |
| Rate hot water temperature(ºC) | 55 | 55 | 55 |
| Dimensions(mm) | 1000*265*810 | 1000*265*810 | 1000*265*810 |
| Weight(kg) | 40 | 52 | 60 |
| Power supply | 220V/50Hz | 220V/50Hz | 220V/50Hz |
| Rated input power (W) | 900 | 1300 | 2000 |
| Rated input current (A) | 4.1 | 5.9 | 9.0 |
| Ambient temperature (ºC) | -10~45 | -10~45 | -10~45 |
MULTI-FUNCTION HEAT PUMP SYSTEM
For space heating, cooling and hot water generation.
Performance characteristics
- Multi-function heat pump system combines heating, cooling and hot water.
- Higher energy efficiency due to dual-core system host which can choose full load/half load operation mode.
- Smart variable fan and high efficiency heat transfer fins lead to convenient and comfortable feeling.
- Conduct automatic deforesting function while heating in winter.
- Perfect industrial design of compact indoor heat transfer unit.
SPECIFICATION
| Series | KF-3P-LPR | KF-6P-LPR | KF-9P-LPR | KF-12P-LPR |
|---|---|---|---|---|
| Rated voltage (V) | 220 | 220/380 | 220/380 | 220/380 |
| Input power(W) | 2370 | 4740 | 7110 | 9480 |
| Rated heating power (W) | 9200 | 18800 | 27600 | 36800 |
| Rater cooling power (W) | 7400 | 14800 | 22200 | 29600 |
| Reference application area(m2) | 60-120 | 120-180 | 180-240 | 240 |
| Rater hot water output(L/H) | 210 | 210 | 210 | 210 |
| Water tank capacity(L) | 200 | 200 | 200 | 200 |
| Energy storage tank | Non | Non | 200 | 200 |
| Max. operating pressure (refrigerant) | 2.8Mpa | 2.8Mpa | 2.8Mpa | 2.8Mpa |
| Max. operating pressure (water) | 0.7Mpa | 0.7Mpa | 0.7Mpa | 0.7Mpa |
| Max. pressure loss (heat exchanger) | 35Kpa | 40Kpa | 45Kpa | 50Kpa |
| Max. heat exchanger flow rate(t/h) | 1.3 | 2.6 | 3.9 | 5.2 |
THE COMPLETE SYSTEMS ARE IMPORTED FROM LINUO-RITTER AND WILL BE MANUFACTURED IN INDIA SOON.
