AIR SOURCE HEAT PUMP
AIR SOURCE HEAT PUMP - COMMERICAL SYSTEM

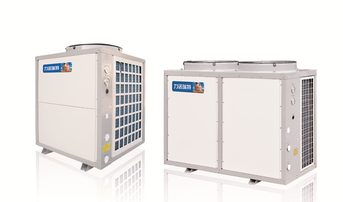

STANDARD AIR SOURCE HEAT PUMP
For hot water generation
Applications:
Hotel, SPA center, school, hospital, factory and other large scale applications. (For Swimming pool applications, we provide dedicated system with special anti-corrosion treatment to the condenser.)
Performance characteristics:
- Safe and environment friendly system that adopts world-leading compressor with high efficiency;
- Water is circulated by pump and heated through circulation, then storaged in water tank for different usages;
- Automatic operation with remote system control that is easy operating and maintenance;
- No combustible material; no fuel storage problem; no dedicated space.
SPECIFICATION
| Series | KFXRS-3P | KFXRS-5P | KFXRS-7P | KFXRS-10P | KFXRS-12P |
|---|---|---|---|---|---|
| Heating output (KW) | 11.4 | 19.3 | 25.6 | 39.5 | 46.3 |
| Rated hot water output (L/h) | 245 | 415 | 550 | 850 | 990 |
| Circulating water flow rate (m3/h) | 2.5 | 4.0 | 5.0 | 8.0 | 9.5 |
| Rated hot water temperature(ºC) | 55 | 55 | 55 | 55 | 55 |
| Power | 380V/3N/50Hz | 380V/3N/50Hz | 380V/3N/50Hz | 380V/3N/50Hz | 380V/3N/50Hz |
| Rated input power(KW) | 2.8 | 4.6 | 6.3 | 9.5 | 11.3 |
| Weight(kg) | 105 | 140 | 170 | 300 | 350 |
| Dimension(mm) | 710*810*840 | 820*865*1040 | 820*865*1240 | 1540*710*1180 | 1540*710*1380 |
| Ambient temperature(?) | -10~45 | -10~45 | -10~45 | -10~45 | -10~45 |
| Type | KFXRJ-15P | KFXRJ-20P | KFXRJ-25P |
|---|---|---|---|
| Heating output (W) | 57.8 | 75.6 | 95.5 |
| Rated hot water output (L/h) | 1240 | 1620 | 2050 |
| Circulating water flow rate (m3/h) | 12.0 | 15.5 | 19.5 |
| Rated hot water temperature(ºC) | 55 | 55 | 55 |
| Power | 380V/3N/50Hz | 380V/3N/50Hz | 380V/3N/50Hz |
| Rated input power(KW) | 13.5 | 17.7 | 22.4 |
| Weight(kg) | 480 | 650 | 750 |
| Dimension(mm) | 1585*850*1525 | 2000*1005*1865 | 2010*1165*2025 |
| Ambient temperature(ºC) | -10~45 | -10~45 | -10~45 |

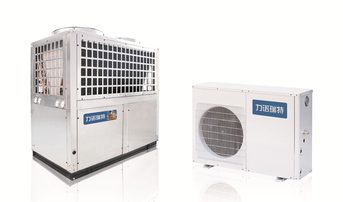

INSTANT HOT WATER AIR SOURCE HEAT PUMP
For hot water generation
Applications:
Hotel, SPA center, school, hospital, factory and other large scale applications.
Performance characteristics:
- With all the performance characteristics of the Standard heat pump system
- Adopt EVI (Economized vapor injection) technology that is appropriate for cold climate area. System can operate well at ambient temperature of -20ºC with COP over 2.0.
SPECIFICATION
| Type | KFYRS-3P | KFYRS-5P | KFYRS-7P | KFYRS-7P | KFYRS-12P |
|---|---|---|---|---|---|
| Heating output (KW) | 11.4 | 19.3 | 25.6 | 39.6 | 46.3 |
| Rated hot water output (L/h) | 245 | 415 | 550 | 850 | 990 |
| Circulating water flow rate (m3/h) | 2.5 | 4.0 | 5.0 | 8.0 | 9.5 |
| Rated hot water temperature(ºC) | 55 | 55 | 55 | 55 | 55 |
| Power supply | 380V/3N/50Hz | 380V/3N/50Hz | 380V/3N/50Hz | 380V/3N/50Hz | 380V/3N/50Hz |
| Rated input power(KW) | 2.8 | 4.6 | 6.3 | 9.5 | 11.3 |
| Weight(kg) | 105 | 140 | 170 | 300 | 350 |
| Dimension(mm) | 710*810*840 | 820*865*1040 | 820*865*1240 | 1540*710*1180 | 1540*710*1380 |
| Ambient temperature (ºC) | -10~45 | -10~45 | -10~45 | -10~45 | -10~45 |
| Series | KFYRJ-15P | KFYRJ-20P | KFYRJ-25P |
|---|---|---|---|
| Heating output (kw) | 57.8 | 75.6 | 95.5 |
| Hot water output (L/h) | 1240 | 1620 | 2050 |
| Water circulating rate (m3/h) | 12.0 | 15.5 | 19.5 |
| Rated hot water temperature (ºC) | 55 | 55 | 55 |
| Power supply | 380V/3N/50Hz | 380V/3N/50Hz | 380V/3N/50Hz |
| Rated input power (W) | 14 | 18.4 | 23.0 |
| Host weight (kg) | 480 | 650 | 750 |
| Host dimensions (mm) | 1584*849*1523 | 2000*1003*1863 | 2000*1110*1988 |
| Ambient temperature (ºC) | -10~45 | -10~45 | -10~45 |

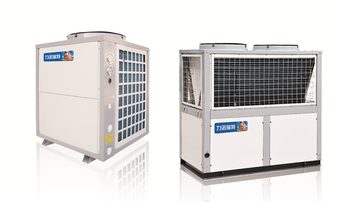

SWIMMING POOL HEAT PUMP
For space heating, cooling and hot water generation.
Applications:
swimming pool of villa, hotel, school and beauty salon.
Performance characteristics?
- Operating under Reverse Carnot Cycle; conduct heat exchange by refrigerant recycling.
- Adopt Titanium and Alpaka pipe condensor with special anti-corrosion treatment to expand operation life.
- Provide constant temperature hot water for both indoor and outdoor swimming pools.
SPECIFICATION
| Series | KFXRY-12.2 | KFXRY-16.4 | KFXRY-20.6 | KFXRY-40.7 | KFXRY-54.6 | |
|---|---|---|---|---|---|---|
| Heating output (KW) | 12.2 | 16.4 | 20.6 | 40.7 | 54.6 | 84.5 |
| Rated hot water temperature(ºC) | 28 | 28 | 28 | 28 | 28 | 28 |
| Power supply | 220V/1N/50Hz | 220V/1N/50Hz | 220V/1N/50Hz | 220V/1N/50Hz | 220V/1N/50Hz | 220V/1N/50Hz |
| Rated input power (kw) | 2.2 | 3.0 | 3.8 | 7.5 | 10.0 | 15.4 |
| Rated input current (A) | 10.0 | 5.8 | 7.4 | 14.6 | 19.5 | 30 |
| Heat exchanger | Titanium pipe | Titanium pipe | Titanium pipe | Titanium pipe | Titanium pipe | Titanium pipe |
| Host weight (kg) | 68 | 99 | 125 | 270 | 460 | 620 |
| Host dimensions (mm) | 1110*470*680 | 820*865*1040 | 820*865*1040 | 1584*849*1523 | 1584*849*1523 | 2000*1003*1863 |
| Ambient temperature (ºC) | -10~45 | -10~45 | -10~45 | -10~45 | -10~45 | -10~45 |
THE COMPLETE SYSTEMS ARE IMPORTED FROM LINUO-RITTER AND WILL BE MANUFACTURED IN INDIA SOON.
