Evacuated Tube Collectors

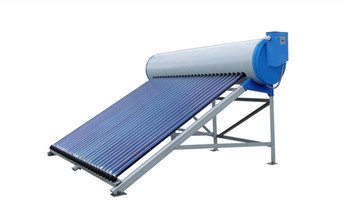

PRESSURIZED THERMOSIPHON SYSTEM WITH EVACUATED HEAT PIPES

Heat pipe pressurized solar water heater
for water heating
Scope of delivery:

  • Tank,
  • Stainless steel / galvanized sheet bracket,
  • evacuated heat pipes.
Installation types:
  • Flat roof, pitched roof.
Advantages and benefits:
  • Easy installation and low maintenance cost
  • High-quality inner tank to continuously maintain a good water quality
  • Stable operating without tube scaling or pipe explosion risk.
Performance characteristics:
  • Fast system starting, high energy yield and low heat loss
  • Stong capability of antifreeze that is available for applications in low temperature area
  • Pressurized system operating which is suitable for different installation methods

SPECIFICATION

Type HP 100L HP 150L HP 200L HP 300L
Tank Capacity 100L 150L 200L 300L
Inner tank SUS304 2B/1.2/Diameter 385mm SUS304 2B/1.2/Diameter 385mm SUS304 2B/1.2/Diameter 385mm SUS304 2B/1.2/Diameter 385mm
Outer tank Painted steel, 0.31/Diameter 480mm Painted steel, 0.31/Diameter 480mm Painted steel, 0.31/Diameter 480mm Painted steel, 0.31/Diameter 480mm
Side cover Painted steel/ stainless steel Painted steel/ stainless steel Painted steel/ stainless steel Painted steel/ stainless steel
Insulation Polyurethane/50 Polyurethane/50 Polyurethane/50 Polyurethane/50
Bracket Stainless steel or Galvanized sheet Stainless steel or Galvanized sheet Stainless steel or Galvanized sheet Stainless steel or Galvanized sheet
Bracket inclination 30º 30º 30º 30º
Type of tube φ58×1800mm heat pipe φ58×1800mm heat pipe φ58×1800mm heat pipe φ58×1800mm heat pipe
Tube No. 10 15 20 30
Rated working pressure 0.6Mpa 0.6Mpa 0.6Mpa 0.6Mpa
Other parts Provision for electric heating and anode protection Provision for electric heating and anode protection Provision for electric heating and anode protection Provision for electric heating and anode protection

SPLIT PRESSURIZED SYSTEM WITH EVACUATED TUBE HEAT PIPE

Split heat pipe pressurized system
for water heating
Scope of delivery:

  • Tank,
  • aluminum bracket,
  • heat pipe collector.
Installation types:
  • Pitched roof, flat roof
Advantages and benefits:
  • Easy installation, low maintenance cost and good looking appearance
  • The water tank and bracket can be matched with both flat and pitched type bracket
  • Building-integrated solar water heating application with a flexible tank system
Performance characteristics:
  • Fast system starting, high energy yield and low heat loss
  • High-quality stainless steel in the inner tank to continuously maintain a good water quality.
  • Inner tank is suitable for high pressure conditions

SPECIFICATION

Type PS 150L PS 300L
Tank capacity 150L 300L
Material inner tank SUS304/1.2mm SUS304/1.2mm
Insulation of tank Polyurethane/48 Polyurethane/48
Dimension outer tank φ480 x 1425 φ480 x 2700
Bracket material Alluminium alloy 6063 Alluminium alloy 6063
Type of collector Heat pipe collector U1818×1 Heat pipe collector U1818×2
Type of evacuated tube φ58×1800mm heat pipe φ58×1800mm heat pipe
No. of heat pipe 18 36
Aperture area 2.33m2 4.66m2
Gross area 2.82m2 5.64m2
Rated working pressure 0.60Mpa 0.60Mpa
Max. testing pressure 0.90Mpa 0.90Mpa
Backup electrical heater 1.5KW, 220V 50Hz 1.5KW, 220V 50Hz

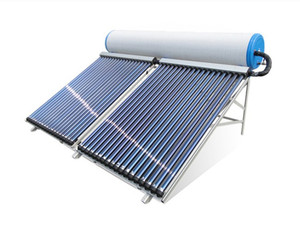

PRESSURIZED JACKET-TYPE THERMOSIPHON SYSTEM WITH EVACUATED TUBES

Jacket-type pressuried thermosiphon system
for water heating
Scope of delivery:

  • tank with floating tank,
  • aluminnum brackets,
  • evacuated tubes
Installation types:
  • Flat roof.
Advantages and benefits:
  • Availabel for applications with low requirement of water quality.
  • Automatic feeding of heat-conducting water by floating ball control.
  • Customized solar water heating solutions
Performance characteristics:
  • Separate circulation of heating water and daily-used hot water to ensure the purity of daily-used water.
  • Adopts mechanical temperature control to set high-temperature cut-off and operating temperature.
  • Inner tank is suitable for high pressure conditions.

SPECIFICATION

Type JT 150L JT 200L JT 250L
Tank capacity 150L 200L 250L
Material inner tank Stainless steel SUS 304/1.2mm Stainless steel SUS 304/1.2mm Stainless steel SUS 304/1.2mm
Material outer tank Painted steel/0.4mm Painted steel/0.4mm Painted steel/0.4mm
Floating tank capacity 5L 5L 5L
Material floating tank Stainless steel SUS 304 Stainless steel SUS 304 Stainless steel SUS 304
Bracket material Alluminum alloy 6063 Alluminum alloy 6063 Alluminum alloy 6063
Bracket inclination 30º 30º 30º
Type of evacuated tubes φ47×1800mm φ47×1800mm φ47×1800mm
No. of evacuated tube 18 24 30
Rated working pressure 0.60Mpa 0.60Mpa 0.60Mpa
Electric heating 1500W 1500W 1500W
Other parts Provision for temperature controller and anode protection Provision for temperature controller and anode protection Provision for temperature controller and anode protection

PRESSURIZED BALCONY SYSTEM WITH REMOTE CONTROL

Pressurized balcony system with remote control
for water heating
Scope of delivery:

  • Water tank,
  • evacuated tube collector,
  • heat medium
  • Other accessories.
Installation types:
  • On balcony, on-wall
Advantages and benefits:
  • Space-saving solution with balcony installed collector and indoor tank.
  • Individual controlling through a wireless remote controll.
  • 3D electrical heating backup to provide quickly heating in cloudy days.
Attractive design:
  • Spefical designed collector for balcony integration with middle and high-rise buildings.
  • Wifi smart control via APP on cellphone for system setting.

SPECIFICATION

Type BS 80L BS 100L
Tank capacity 80L 100L
Material inner tank enamel enamel
Inner tank thickness 40mm 40mm
Installation type Horizontal Horizontal
Type of evacuated tube Φ58x2100 Φ58x2100
No. of evacuated tubes 9 11
Aperture area 1.32 1.62
Electric Heating power 80/2000/2800W 80/2000/2800W

Quantity in 20 GP, 40 GP, 40 HC

THE KEY COMPONENTS ARE IMPORTED FROM LINUO-RITTER AND MANUFACTURED IN INDIA BY TAYLORMADE SOLAR UNDER THE BRAND NAME OF LINUO-TAYLORMADE
