Evacuated Tube Collectors


THERMOSIPHON TECHNOLOGY - NON-PRESSURIZED

STANDARD NON-PRESSURIZED THERMOSIPHON SYSTEM
for water heating (Direct flow system) Pipe/Inner Tank material: Copper/Stainless steel or modified PP Scope of delivery: Fully pre-assembled unit comprising

  • Evacuated tubes based on the thermos flask principle
  • Inner tank

Installation types:
Pitched roof, flat roof
Advantages:
  • Cost-effective
  • Low maintenance and repair requirements
  • Quick and easy installation due to complete pre-assembled components and manageable sizes
  • Customizing: Development of customer-specific modifications and individual solutions by request

Application areas: Residential and service sector, public buildings

Series
Model PH 100L PH 200L SP200L SP300L
Type CA47-1515 CA47-1530 CA58-1820 CA58-1830
Capacity l 100 200 200 300
Inner tank/Dia material/mm Stainless steel or modified PP/350 Stainless steel or modified PP/350 Stainless steel or modified PP/380 Stainless steel or modified PP/380
Outer tank/Dia material/mm Gl Sheet/450 l Sheet/450 Gl Sheet/472 Gl Sheet/472
Insulation mm 50 50 45 45
Inclination degree 30/40 30/40 30/40 30/40
Type of tube mm 47/1500 47/1500 58/1800 58/1800
Evacuated tubes no 15 30 20 30

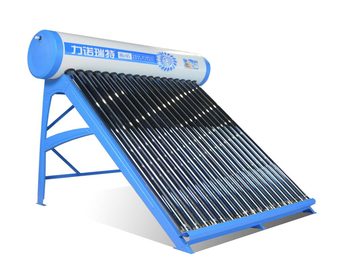

NON-PRESSURIZED THERMOSIPHON SYSTEM WITH DOUBLE USE BRACKET


for water heating (Direct flow system)

Scope of delivery:

  • Tank,
  • galvanzied bracket,
  • Evacuated tube
Installation types:
  • Flat roof, pitched roof
Advantages and benefits:
  • Cost-effective solar water heating solutions.
  • Long operating life time but low in maintainace costs and repair requirement.
  • Customazied system capacities and colors.
  • High energy yield and low heat loss due to high-effect vacuum tubes and PU insulation with HFC245-FA.
Attractive design:
  • Multifunctional galvanzied bracket suitable for both flat and pitched roofs.
  • Special designed for middle and low latitude regions with perfect matched aperature area and tank volume.

Series
Tank capacity l 141 155
Inner tank material Stainless steel Stainless steel
Insulation material/mm Polyurethane/50mm Polyurethane/50mm
Bracket material Galvanized sheet Galvanized sheet
Bracket inclination degree 42/50 42/50
Type of evacuated tube mm Φ58x1800 Φ58x1800
Evacuated tube No. 18 20
Other accessories 1500W electric heating 1500W electric heating
Quantity in 20 GP, 40 GP, 40 HC

THE KEY COMPONENTS ARE IMPORTED FROM LINUO-RITTER AND MANUFACTURED IN INDIA BY TAYLORMADE SOLAR UNDER THE BRAND NAME OF LINUO-TAYLORMADE
